Buyers Products 16011006, SnowDogg HDII/EXII Series Lift Frame (2020+)
Product Description

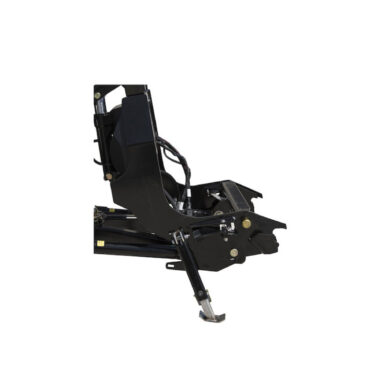

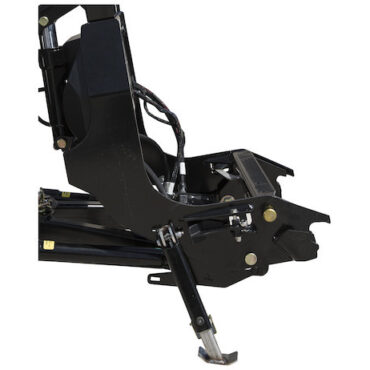

The SnowDogg HDII/EXII Series Lift Frame (2020+) is the core hydraulic lift tower and structural frame component designed to pair with other HDII/EXII series parts to build a complete plow assembly. (Replaces older BPC Part# 16011004)

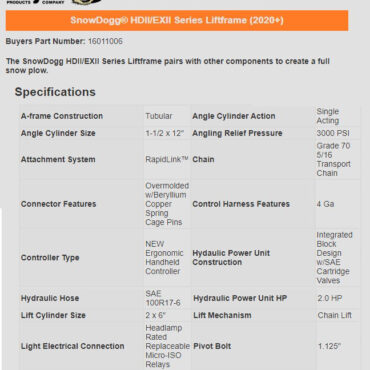

Specifications
- Weight: 493 oz
- Width: 32 in
- Depth: 47 in
- Height: 52 in
- •: A-frame Construction: Tubular; Attachment System: RapidLink; Controller Type: Ergonomic Handheld Controller; Lift Mechanism: Chain Lift; Chain: Grade 70 5/16 Transport Chain
- • •: Hydraulic Power Unit Construction: Integrated Block Design w/SAE Cartridge Valves; Hydraulic Power Unit HP: 2.0 HP; Hydraulic Hose: SAE 100R17-6; System Working Pressure: 1850 PSI; Angling Relief Pressure: 3000 PSI
- • • •: Angle Cylinder Action: Single Acting; Angle Cylinders: 1-1/2 x 12 "; Lift Cylinder: 2 x 6 "; Pivot Bolt: 1.125 "
- • • • •: Plow Light: LED or Dual Bulb Halogen; Plow Light Mount: Dual Stud; Light Electrical Connection: Headlamp Rated Replaceable Micro-ISO Relays; Control Harness Features: 4 Ga; Connector Features: Overmolded w/Beryllium Copper Spring Cage Pins
- • • • • •: Replaces Discontinued BPC Part# 16011004
- Manufactured by: Buyers Products
