Buyers Products 16013106, SnowDogg VXXII Series Lift Frame
Product Description

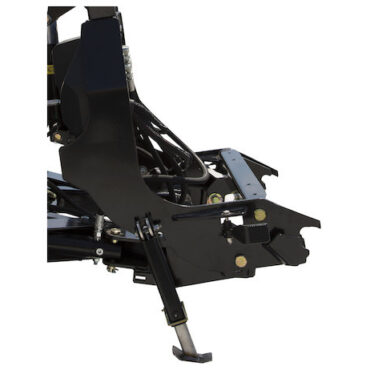

The SnowDogg VXXII Series Lift Frame is the core hydraulic lift tower and structural frame component designed to pair with other VXXII series parts to build a complete plow assembly.

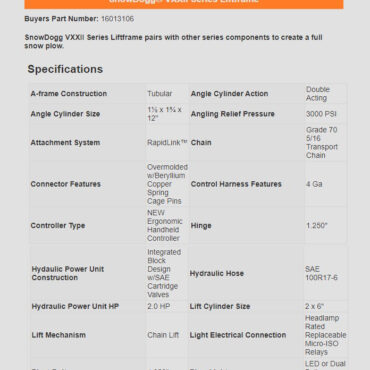

Specifications
- Weight: 418 oz
- Width: 36 in
- Depth: 38 in
- Height: 56 in
- •: A-frame Construction: Tubular; Attachment System: RapidLink; Controller Type: Ergonomic Handheld Controller; Lift Mechanism: Chain Lift; Chain: Grade 70 5/16 Transport Chain
- • •: Hydraulic Power Unit Construction: Integrated Block Design w/SAE Cartridge Valves; Hydraulic Power Unit HP: 2.0 HP; Hydraulic Hose: SAE 100R17-6; System Working Pressure: 1850 PSI; Angling Relief Pressure: 3000 PSI
- • • •: Angle Cylinder Action: Double Acting; Angle Cylinders: 1½ x 1¾ x 12 "; Lift Cylinder: 2 x 6 "; Pivot Bolt: 1.25"
- • • • •: Plow Light: LED or Dual Bulb Halogen; Plow Light Mount: Dual Stud; Light Electrical Connection: Headlamp Rated Replaceable Micro-ISO Relays; Control Harness Features: 4 Ga; Connector Features: Overmolded w/Beryllium Copper Spring Cage Pins
- Manufactured by: Buyers Products
